Discussion Starter #1
I know this is an older controller. I have used one in the past but I am having problems using a trigger.

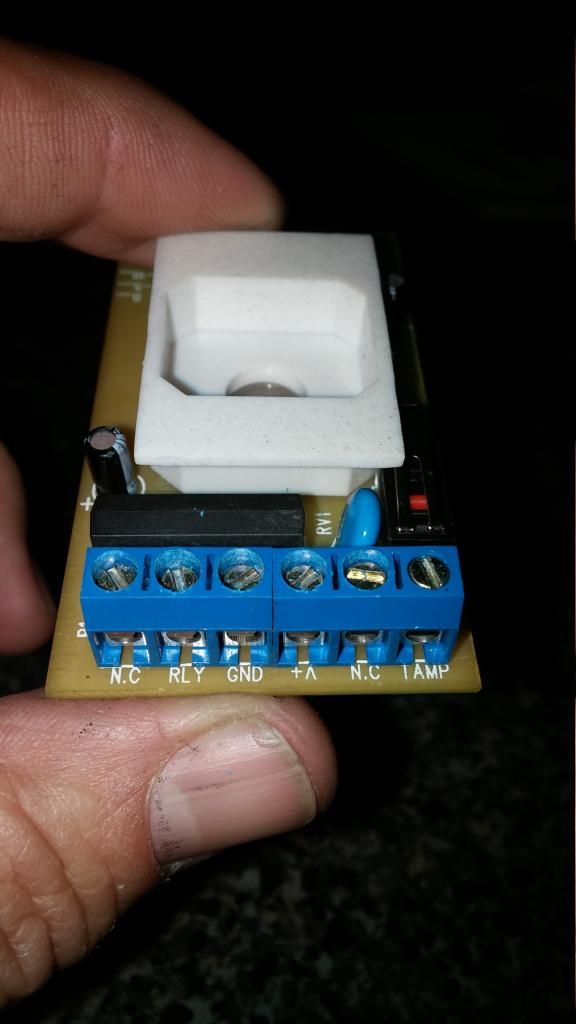

This is the motion sensor I am using. This uses a 12v signal to activate the controller. But I cannot figure out how to wire it. If any one who has used this controller can help I would much appreciate it.


·
Registered
Joined
·
3,734 Posts
Without the schematic for the motion sensor, it looks like it outputs 12v when inactive and 0v when active. Not sure what the Nerve Center needs for a trigger but this motion sensor might be the reverse.
