Thread: Need Advice, want brilliant ground fog

Tweet

I want to produce a knee-high ocean of ground fog - how can I do it?

I have three small 400 watt fog machines and I have just purchased a Chauvet 1750 fogger which should be arriving tomorrow.

For the past two years, I have tried to build a ground fog cooler, but neither one has worked very well. I recently got a suggestion from another hautner to take a section of perforated drain pipe , fill it with ice, and send the fog through that. Haven't tried it yet, but I'm willing to give it a go.

I have also heard there can be a big difference in output depending on the type of juice you use. I honestly don't even know what kind of juice I have right now, a couple of quart containers from Target last year - I think.

So please, please give me all your suggestions on how I can produce creepy, heavy ground fog that will sit with impudence in my graveyard.

First, get yourself some Froggy's Swamp Juice fog fluid. I started using it last year - way better than the Spirit/Target/Party City junk. Second, there's a ton of designs for fog chillers out there. I use a modifed Vortex-design chiller made from a 52-qt ice chest, but there are many ways to chill fog. Haunt Forum is currently having some technical difficulties, but when it comes back, go there and search for "Vortex" - there's a veeerrrry long thread on chiller design. Pack a lunch, you'll need it. I also tried the perf pipe last year. I filled the 10' long, 4" pipe with frozen water bottles and pumped the fog in from one end. I was pretty happy with the results. Here's a video using a Chauvet F-1250:

Fog test with 4" pipe video by Otaku1031 - Photobucket

FWIW, your F-1700 fogger does NOT have a 1700W heater, as Chauvet used to advertise. It's actually a 1200W, but that's another story.

Well, that sucks!

I got it for a really good price, so I don't feel too bad. I might have a friend of mine take a look and see what he and do with the heating element and output. He's sort of an electrical savant.

As for the Froggies Swamp Juice, is that only available online? Do any regional stores carry something like that? We've got one Costume and Supply shop in the area. I'll have to give them a call when they open.

Dang! It costs more to ship a gallon of swamp juice than it does to buy a gallon. I'll have to see if some other local haunters will go in on an order.

Originally Posted by TK421

Dang! It costs more to ship a gallon of swamp juice than it does to buy a gallon. I'll have to see if some other local haunters will go in on an order.

Yeah, I got the same problem - I live in CA, and Froggy's ships out of TN, I think. Check with Halloween Prop Building Supplies For The Home Haunter - Monster Guts or Frightener's Entertainment. Might be able to get a better price from one of them.

I wouldn't be too quick to open your fogger and mess with the heater - you'll kill your 1-year warranty if you do. It's a long story, but there's really nothing you can do without doing a complete overhaul of the fogger; heater, wiring, pump etc - you get the idea.

best advice is.. forget it and spend your time on something that is effective like better lighting.

The whole concept of ground fog in an outdoor environment is a complete waste of time and effort, and despite the number of effective pictures you see taken over the summer in someone's garage, I've never seen a picture or video worth a damn of ground fog in an outdoor graveyard at Halloween.

Ground fog depends on two environmental factors, its basic physics.

Firstly you need absolutely perfectly still air, no wind breeze and preferably nobody walking through it. ANY local air movement is going to whip your ground fog up into a general mist.

Secondly and more importantly the fog needs to be colder than the ambient air, and this is where the myth of fog chillers enters into the fray.

A fog chiller will cool your fog, but unless you live somewhere where the ambient air temperature at Halloween is verging on the tropical you stand no chance of getting the fog cool enough to hug the ground for any period of time... and then if you do live in an area of high temperature then your ice will melt faster... notice the thermodynamic balance here... cold ambient air, fog needs to be a lot colder, but ice will last a lot longer and warm ambient air, fog doesn't need to be so cold and ice melts faster....... this is the laws of physics kicking your butt!

And even if you do build a super chiller.... you have no way of accounting for the wind.

When you do see ground hugging fog then its nearly always dry ice, dry ice is Co2 frozen to a point where it becomes solid, so as it melts it becomes a dense visible vapour which is well below the ambient air temperature so it naturally clings to the ground

Originally Posted by Otaku

I also tried the perf pipe last year. I filled the 10' long, 4" pipe with frozen water bottles and pumped the fog in from one end. I was pretty happy with the results.

great idea on the frozen water bottles....I had zilch for luck on my fog chillers last year too.

I taped a couple peices of that 10' french drain pipe together and got great results as far as dispersing the fog. The only issue I had was that the wind blew 180 degrees different than my tests, so I had to move all the pipe around on Halloween eve....not that big a deal though.

I used a VEI 950 Superfogger.

Made using the same method as Otaku, minus the ice filled bottles. (no need here, it's below freezing anyway in October)





My experience with ground fog for the last 3 years using this method.

Much as Phoenix says, It's not worth it on Halloween.

Between the people that walk through, and the wind, 90% of the time, you will NOT get the effect you're looking for.

I use it to take pictures, where I can patiently wait, pick a calm night, and wait for the fog to drift the right direction to get photos.

That said, FROGGY's SWAMP JUICE kicks major butt!

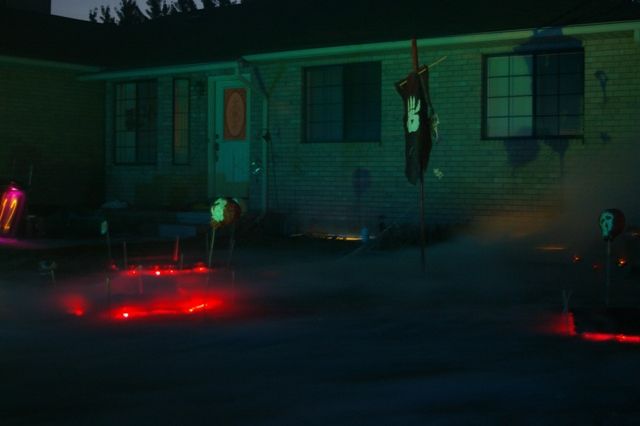

It DOES hang around a tad longer, and does get a LOT denser than other juice. In fact, the side of our house where no wind hits was getting down right THICK with fog before the rain started last year...

For reference, same lighting, same foggers, same 'chiller' method from 2007, using Spirit brand fog juice, produced a bit of a thin mist across the yard, not really a nice fog:

Originally Posted by TK421

Dang! It costs more to ship a gallon of swamp juice than it does to buy a gallon. I'll have to see if some other local haunters will go in on an order.

Shipping is free if you order a 55 gallon drum

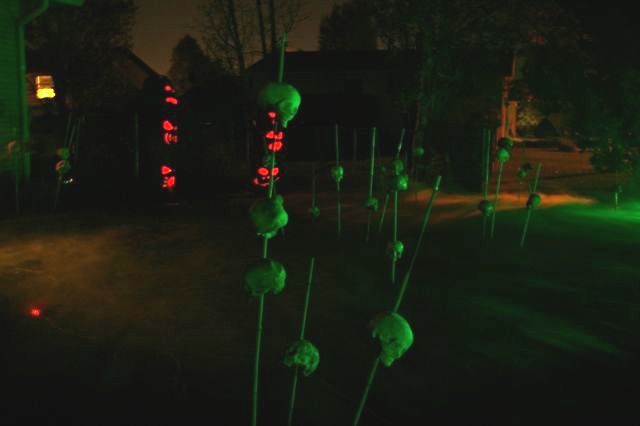

You can see the drain pipe in this picture. That's the second 10 ft piece.



It sucked that the wind changed and blew toward the house instead of the street.


I used Visual Effects fog juice that I ordered from CoolStuffCheap when I ordered my machine last year...shipping is the same as Froggy's but it only cost $60.00 for a case.
